Principles and Applications of Rotary Attachments

Principles and Applications of Rotary Attachments


I. Why Use Rotary Attachments

In the realm of diode laser engraving, achieving precise engraving on spherical or cylindrical objects poses a challenge. Conventional engraving machines often struggle to uniformly apply laser across the entire surface of curved objects, leading to uneven results, distortion, or even incomplete engravings. To address this issue, the rotary attachment emerges as a pivotal accessory, providing engraving machines the ability to rotate objects around their surfaces, thereby achieving more precise and uniform engraving results.


II. The Principles of Rotary Attachments

The principle of rotary attachments is based on the rotational movement of objects. Laser engraving machines typically operate on flat surfaces. However, when engraving or marking spherical, cylindrical, or non-planar objects, placing the object on the worktable alone often falls short of achieving the desired effect. In such cases, a rotary attachment is used to secure the object on a device capable of rotation. This allows the object to spin around its axis. As the laser head operates, it moves in sync with the object's rotation, ensuring even coverage of the object's surface. This method guarantees the uniformity of the laser's action across the entire surface, resulting in higher precision and more consistent engraving effects.


III. Applications of Rotary Attachments

1.Customized Gifts and Souvenirs:

Engraving personalized logos or names on objects like golf balls, tennis balls, and other spherical items.
Creating personalized three-dimensional gifts, such as custom cylindrical keychains.

2.Art and Craft Creation:

Engraving artistic pieces, sculptures, and decorations on spherical objects, incorporating textures and patterns onto their surfaces.
Adding fine patterns and text onto ceramic, porcelain, and glass items.

3.Jewelry and Accessories:

Carving intricate textures, patterns, and details onto jewelry, enhancing their artistic value.
Personalizing cylindrical jewelry items like rings and bracelets with names, dates, and other individualized information.

4.Culinary Industry:

Engraving patterns, text, and decorations onto wine glasses, bottles, and other cylindrical culinary items for special occasions.
Crafting unique decorations for cylindrical cakes and pastries.

5.Toy and Model Creation:

Adding details and patterns to toy vehicle tires, cylindrical architectural models, and more.
Engraving logos and markings onto cylindrical model rockets, spacecraft, and similar objects.

IV. Types of Rotary Attachments

Roller Rotary Attachment

A roller rotary attachment has two rollers over a plain base. The rollers are separated by a distance that can be adjusted according to the diameter of the object. It is only suitable for regular cylindrical objects. A commonly available laser rotary engraver on the market usually has this type of rotary. It is quite common, but it cannot handle all types of rounded objects.

Chuck Rotary Attachment

For irregular cylindrical objects, a chuck rotary attachment is suitable. This is also a very common rotary attachment for a laser engraver. But it also has various limitations, such as it cannot hold objects having a large diameter. In addition, it cannot be dismantled to work on longer objects.

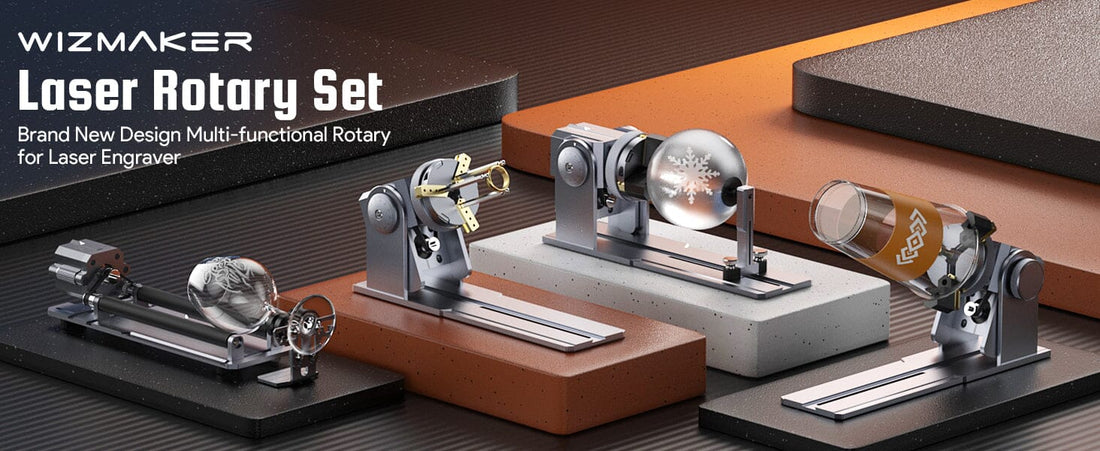

4-in-1 Rotary Attachment

It does the work of four types of rotary attachments, including roller rotary, chuck rotary, sphere rotary, and ring rotary. Due to the combination of four types of rotary attachments, 4-in-1 rotary attachment can work on 90% of daily cylinder engraving and sphere engraving scenarios. It is perfect for vector as well as raster engraving. With that being said, it is an ideal laser engraver rotary attachment because it has everything you need.

V. Recommended Rotary Attachment

For purchasing a rotary attachment, I recommend opting for the 4-in-1 rotary attachment. This type combines the functionalities of the roller rotary attachment and chuck rotary attachments, saving you the need to buy two separate accessories simultaneously.
